Output Calculations

Maximum line lengths for L-TEC line projectors

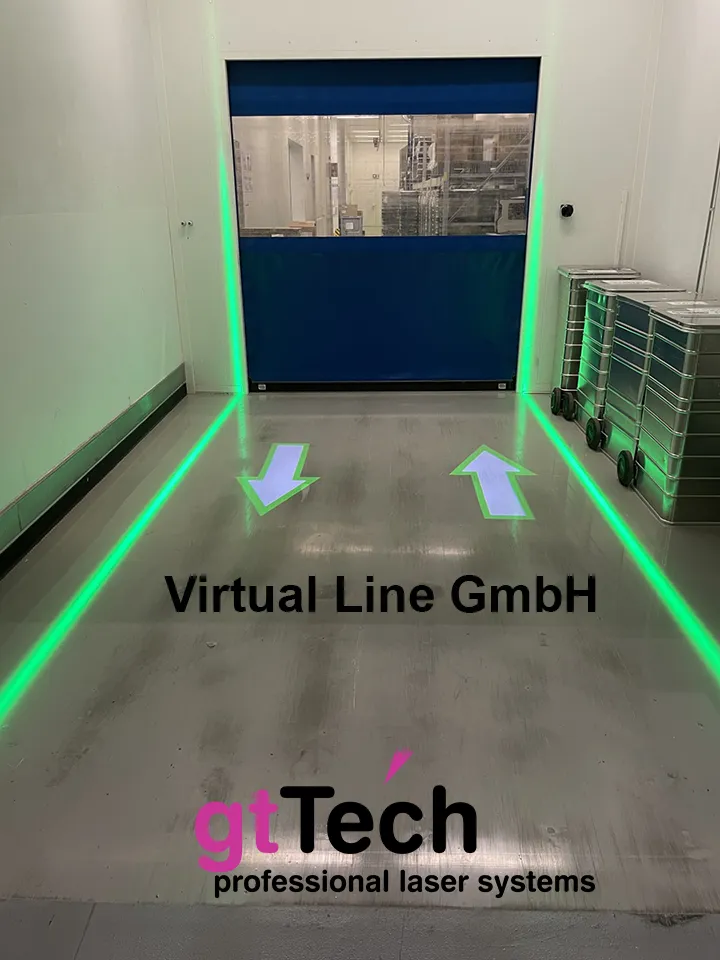

L-TEC line projectors can project a single line in a desired color and length per projector.
The maximum line length depends on the installation height and the lens used.
Projection distance = installation height minus 40 cm

Flaps, which will be delivered with every projector, can shorten the lines by up to 30% – if desired.
“Color-changing line projectors” can switch the color from green to red to yellow.

Possible output sizes for S-TEC 40/60 Surface Projectors

S-TEC surface projectors can project whatever you want them to, as long as you stay within the diameter of the light beam on the floor.

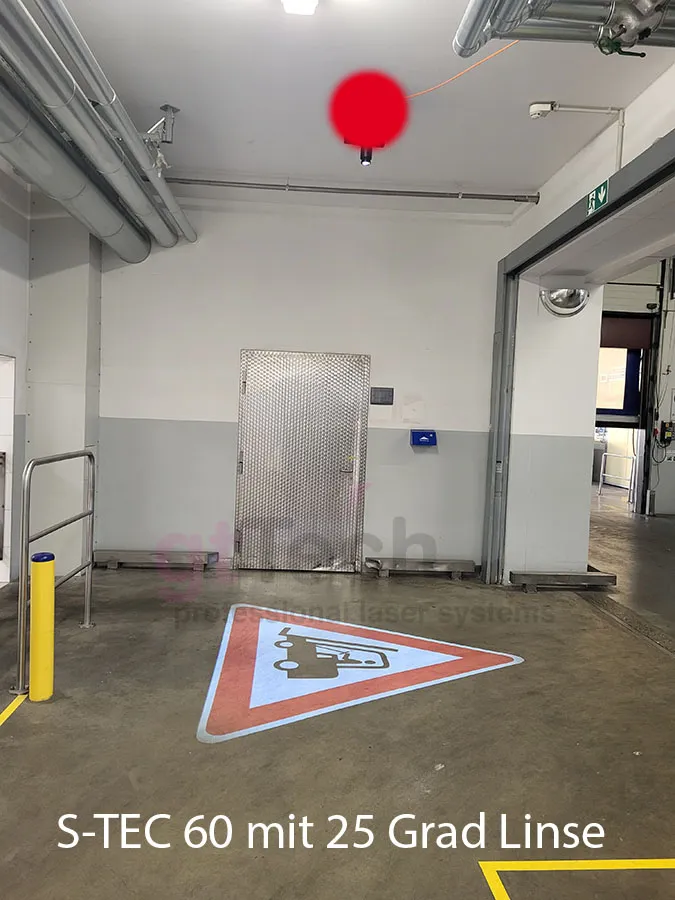

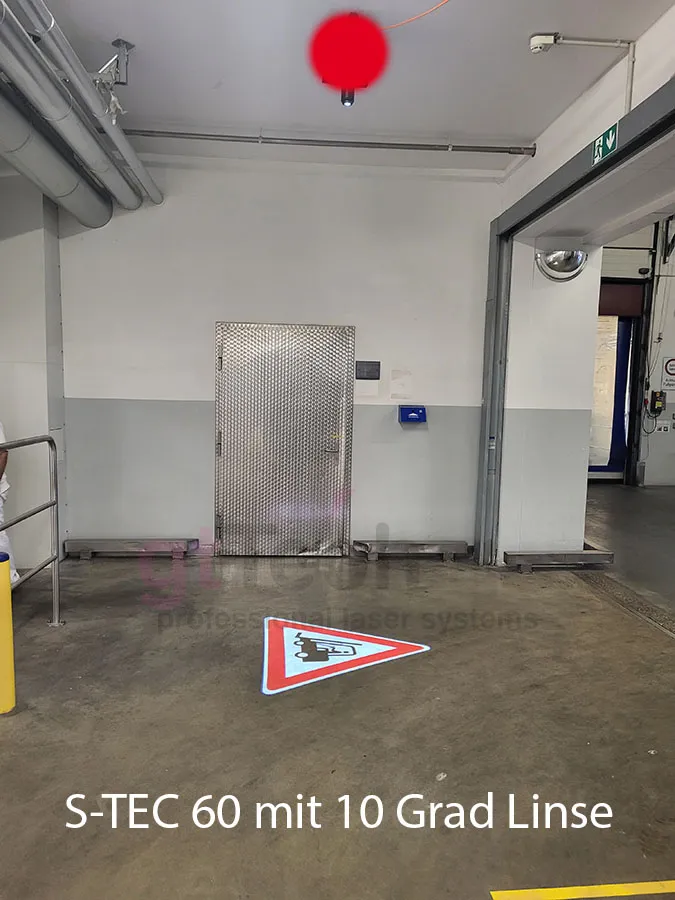

The diameter of the light beam on the floor, as well as the size of the image, are determined by the installation height and the lens used in the projector: (shown above and to the right in the example)
Projection distance = Installation height – 35 cm

Possible output sizes for S-TEC 90/150/300 Surface Projectors

S-TEC surface projectors can project whatever you want them to, as long as you stay within the diameter of the light beam on the floor.

As long as you stay within the output area, you can display whatever you like. We’ll create the appropriate layout. Feel free to check out “Static Layouts” for more information.

Measuring optics in use:
(Measuring optics are included free of charge with every surface projector)
